Heavy Duty Handset – Standard / AutoPlay

The Heavy Duty Armoured Cable Handset offers high quality audio within an impact resistant plastic case. Ideal for use within the public domain, it’s available as a standard handset or with AutoPlay functionality.

Contact for Quote

Call: 1-800-261-3199 Email: sales@digitalaudiotechnologies.com


What is it?

The Heavy Duty Handset combines simple design with high-grade, impact-resistant plastic to produce an extremely rugged handset, ideal for busy visitor attractions and public spaces. It boasts a superb quality speaker, which offers great dynamic range, and is able to reproduce music of high clarity or narrative text clearly for the listener.

An 8mm thick, 1.35m long, stainless steel braided armoured cable protects the internal audio cable. A 3.5mm audio jack allows for simple connection to your audio source. A robust strain relief connecting the cable to the handset offers further protection against cable fracture giving your handset the maximum durability.

How Does it Work?

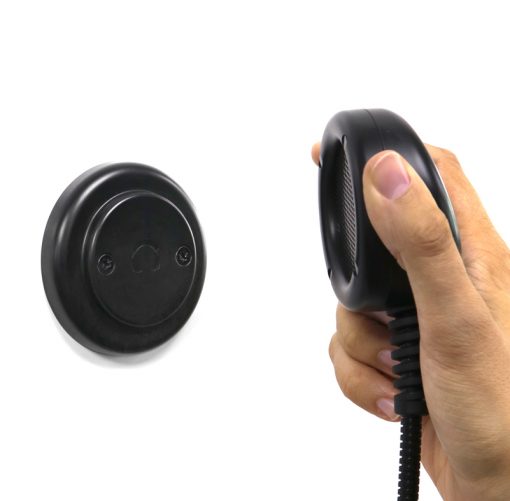

Simply connect your Heavy Duty Handset to your audio playback device. There are two versions of the Heavy Duty Handset, ‘Standard’ or ‘Autoplay’. Standard operates like any other handset – place it to your ear and listen to the audio file that is playing. The AutoPlay version incorporates an Auto-Trigger function, this activates the audio content to play when the handset is removed from it’s magnetic hanger. The hanger offers an elegant and simple-to-use storage solution. We have optimised the magnetic pull force so that it is easy to remove with minimum effort, and equally straightforward to replace.

How are they Fitted?

With the 90° Swivel Knuckle and Mounting Plate, the Heavy Duty Handset is designed to be mounted through any surface. The knuckle can be fitted through any panel or casing. The 3.5mm audio jack has 650mm of cable (from knuckle to tip) which can then be connected to your chosen playback device.


The Heavy Duty Handset has a number of options. It can be purchased with Silver or Black styling (applies to the grill, armoured cable, knuckle and mounting plate). There is also the choice between the AutoPlay and Standard version, as well as the option of Custom Branding Labels.

Additional information


AutoPlay, Standard


Black, Silver

Branding Label

Yes, No

Nominal Impedance


Frequency Range


Sound Pressure Level


Input Power (W)

Rated: 30Mw – Max: 50mW

Input Power (V)

Rated: 1.7V – Max: 2.25V

Armoured Cable Length


Trigger Cable Length

300mm (AutoPlay version only)

3.5mm Cable Length

650mm (+/- 10mm) From Knuckle

Screw Sizes

Wood Screws (Driver bit No.2, 30mm) – Machine Screws (Imperial M4, 30mm)

Switching Signal (AutoPlay)

Handset on base: Contact closed / Handset off: Contact open

Switching Capacity


Operating Temperature

-25°C to 60°C

Hearing Aid Compatible



1 x Heavy Duty Handset, 1 x Magnetic Hanger, 1 x Knuckle Mounting Plate, 2 x Wood Screws 7 2 x Machine Screws (for fitting Hanger)
